A 3D Model

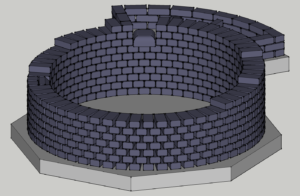

I’ve finally completed the design on Sketchup and have got a nice 3D model that I can move around to different angles.

I should have rendered images as I went to show the various stages, but I didn’t, so I can’t!

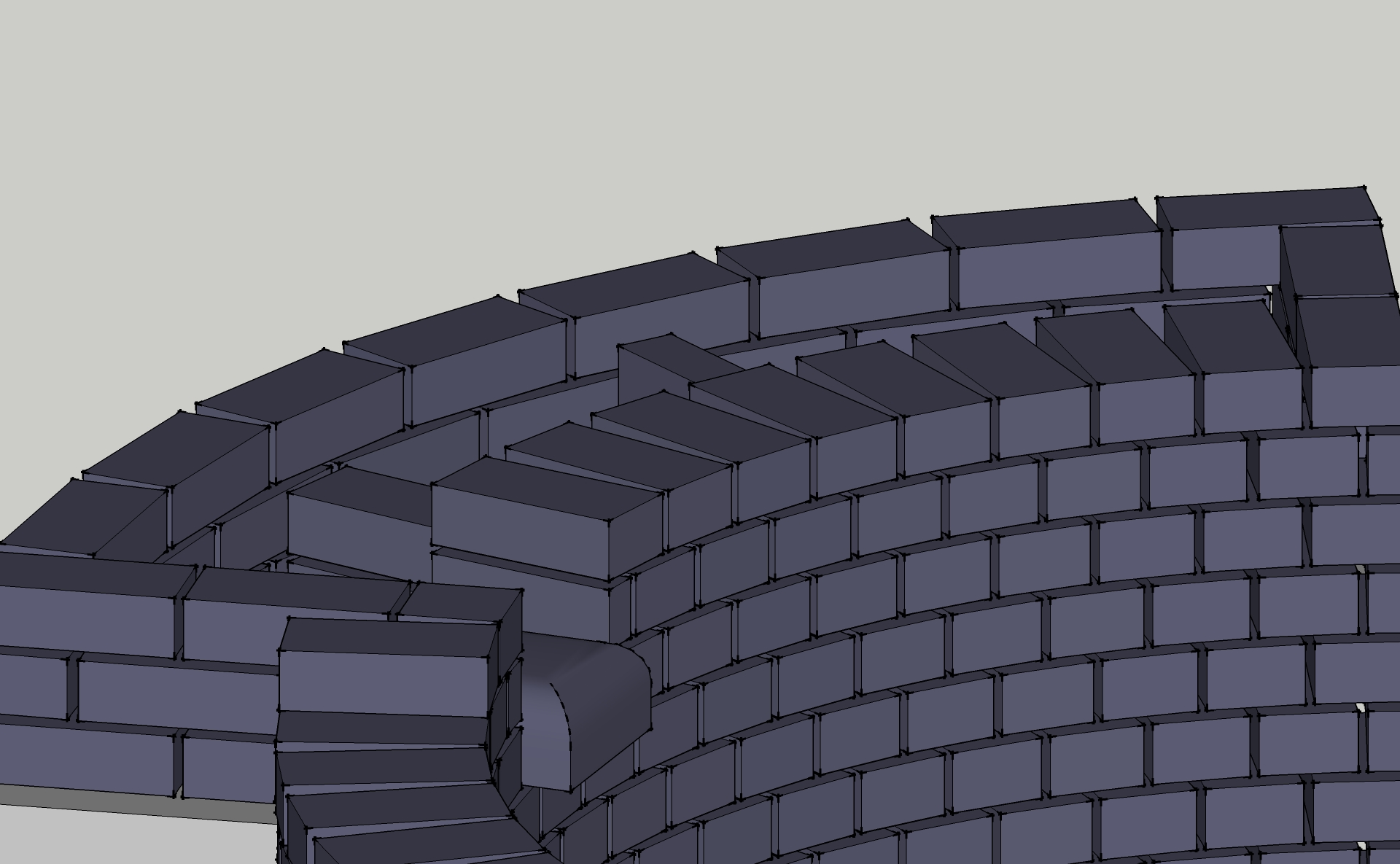

I’ve added the octagonal concrete base at 150mm thickness and also the concrete base for the ‘fish ladder’ at the back, where the water will come out of the filtration system and make its way down a couple of drops and out over a ‘double bull-nose’ capping block, hopefully adding some aeration.

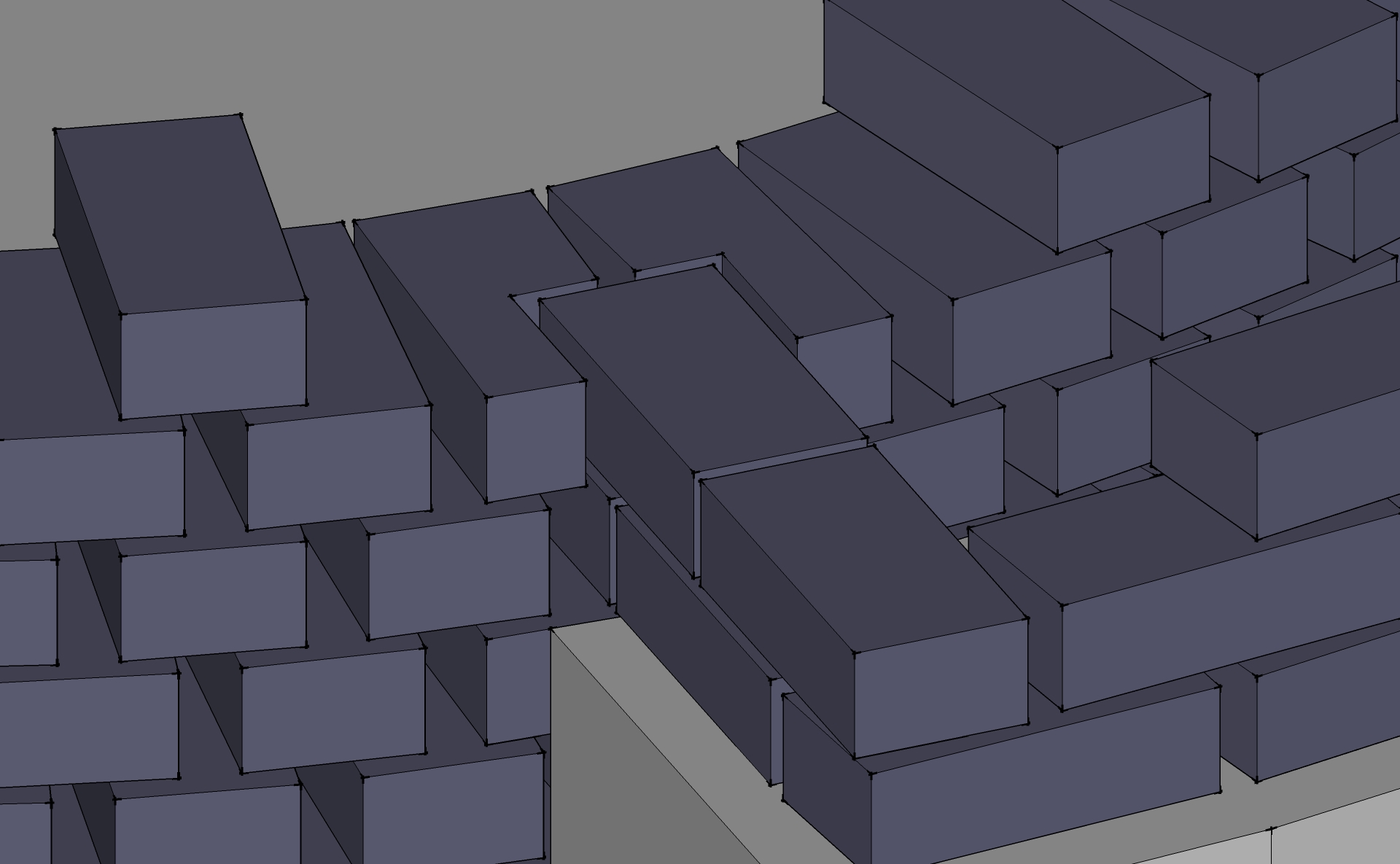

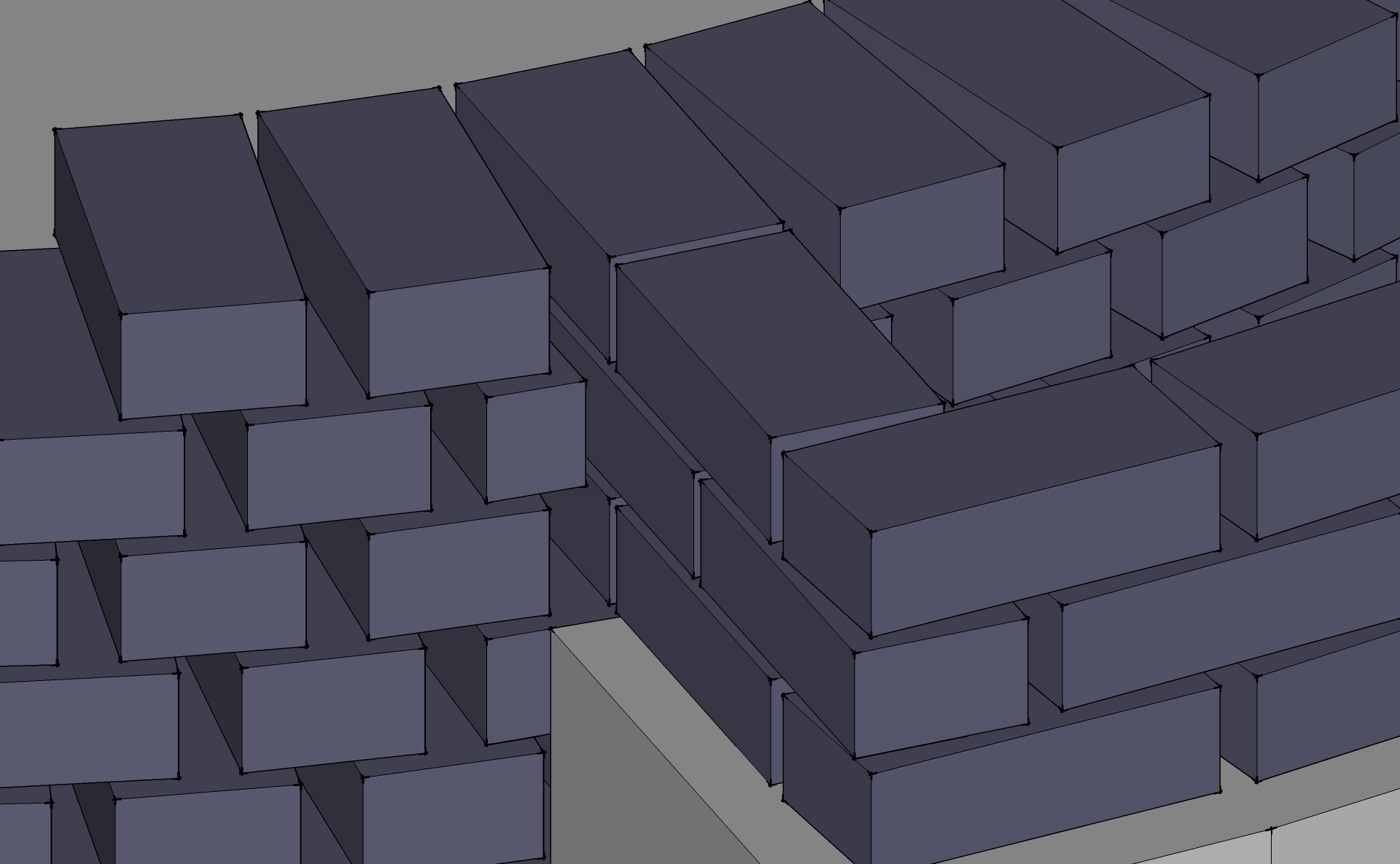

I’ve rendered an image of a nice set of cuts I’ll have to make too:

I’ll make sure I take a pic in real life too…
